Product information "Panel dividing saw"

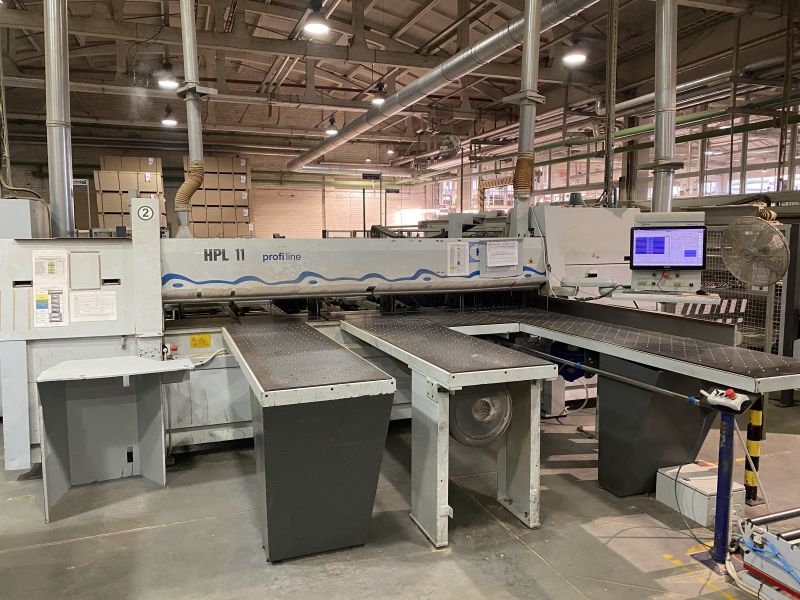

Holzma type HPL 11/32/22  Panel dividing saw
YOC 2004   # 48431

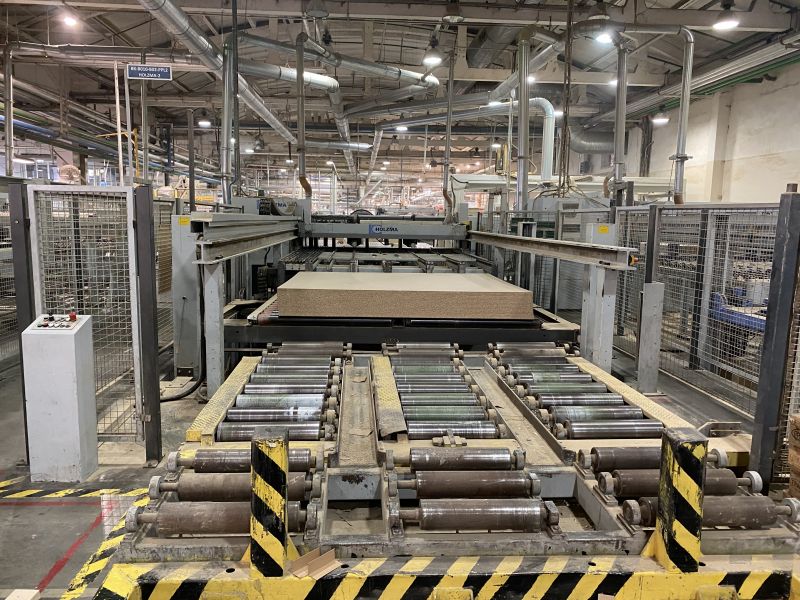

Feeding via electro-hydraulic four-column lifting table
Insertion of the individual panels or packs via two micro-inserts
Electronic control CADmatic Optimat

Technical data:
Cutting length 3200 mm
Cutting width (program slide travel) 3200 mm
Panel thickness max. 38 mm
Panel thickness min. 8 mm
Package height max. 110 mm
Finished part size at least 70 x 70 mm
Strip width with rip saw at least 70 mm
Part length for cross-cut saws at least 70 mm

Clamp opening max. 130 mm
Saw carriage feed forward 5-130 m / min
Return 130 m / min constant
Quick clamping system ’Power-Loc’
Program slide speed max. 80 m / min
Angle pressing device, double-sided
Main saw motor 18 kW
Scoring saw motor 2.2 kW
2 Micro-slots
Lift table size 3200 x 2200 mm

Stacking height lift table
  at floor-level installation max. 680 mm
  for installation in a pit max. 880 mm
Load lifting table max. 7 to
10 clamps

- Air cushion tables
    Free-standing
    1 x 1600 x 400 mm
    1 x 2500 x 400 mm
    1 x 2810 x 400 mm
    In fold down design 1 x 650 x 650 mm

- Lifting table columns for stacking heights of up to 1400 mm
- Rotating device 3200
- Anodized aluminium table rails
- Label program
- MDE machine data acquisition program
- Online network + floppy disk

Electrics 400 V / 50Hz
