Thermal oil heating system

Details
Machine cat.Thermal oil heating system
Year2001
ManufacturerGekaKonus
TypeGKV 1000/40
Dimensions2 MW
Machine groupSpecial Machines / Miscellaneous
Description

Product information "Thermal oil heating system"

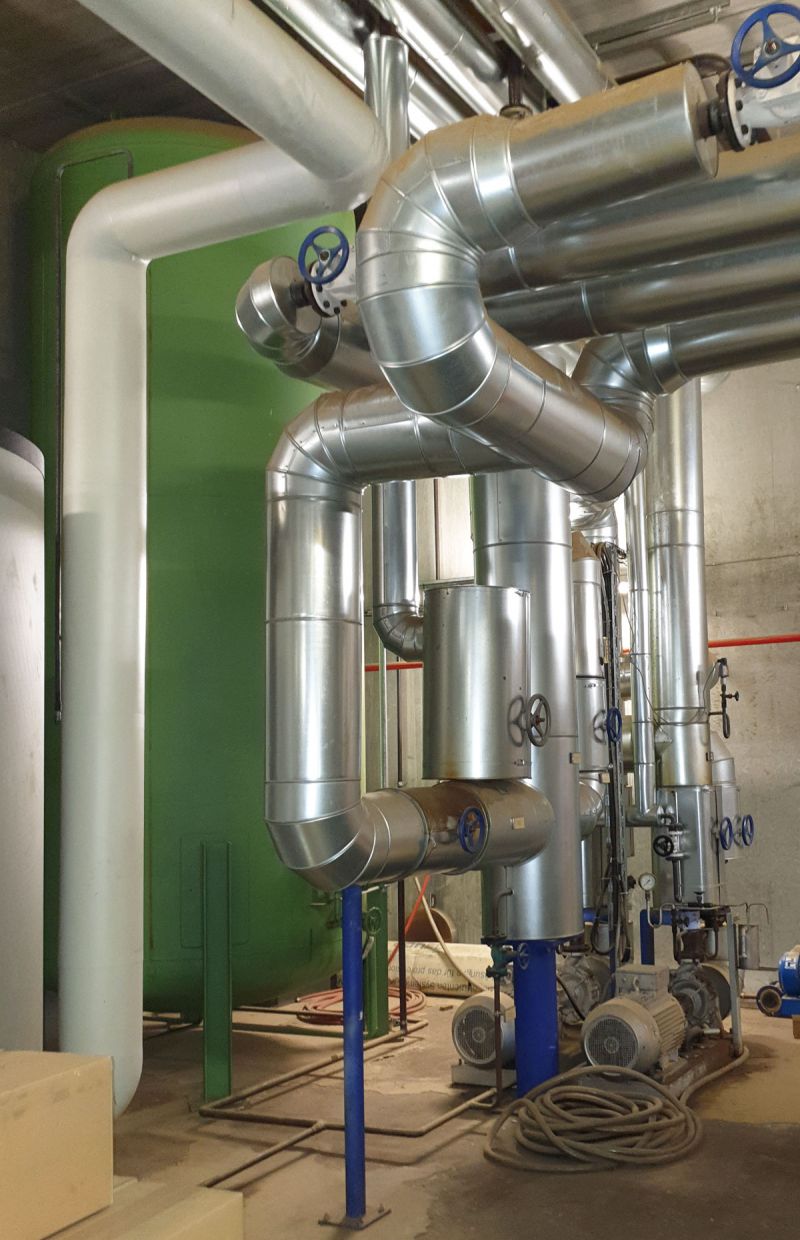

Thermal oil heating system  GekaKonus,

Power  2 MW

Consisting of:

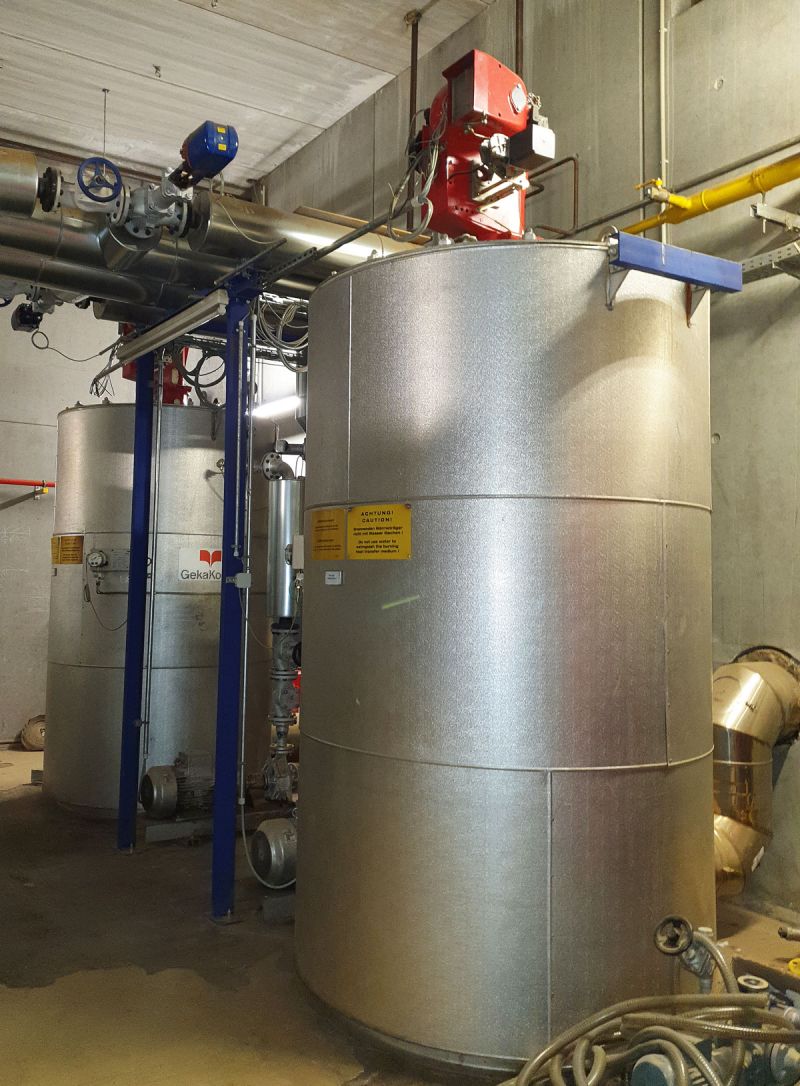

- 2 x Heating boilers, type GKV 1000/40
   ea. power 1000 kW, volume 797 l, max. pressure 10 bar,
   Minimum volume flow 39.6 m3 / h, max. temperature 300 ° C,
   ΔT = 50, Weishaupt burner, heating medium natural gas,

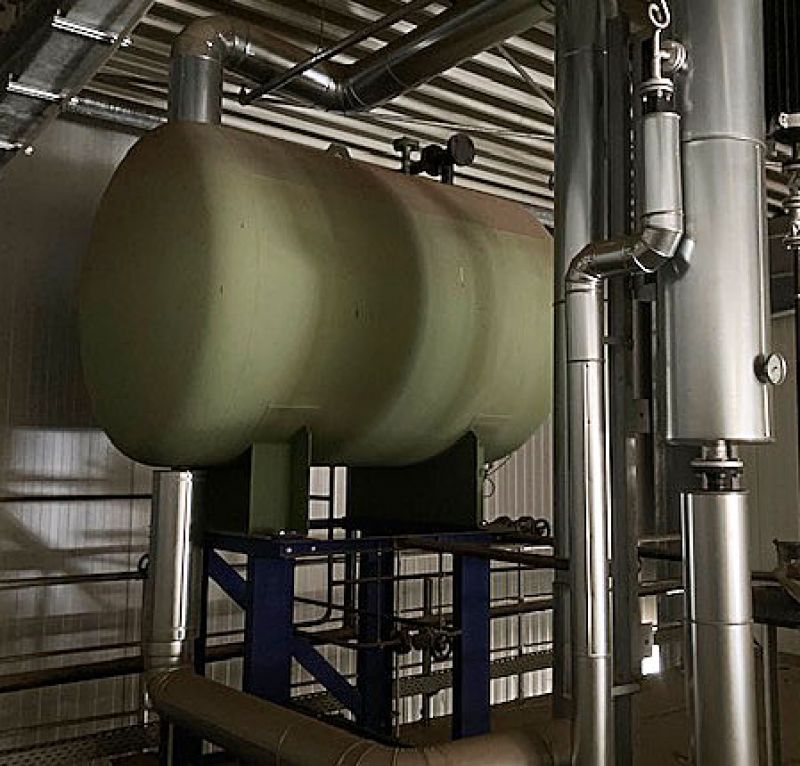

- 1 x Collecting vessel type SAV 150/0
- 1 x Expansion vessel type A…. / RL
