Automatic Sizing and Edge Processing machine

Details
Machine cat.Automatic Sizing and Edge Processing machine
Year1995
ManufacturerHomag
TypeKF 20/17/H/30
Dimensions30 mm
Machine groupSizing & Edgebanding/Processing
Description

Product information "Automatic Sizing and Edge Processing machine"

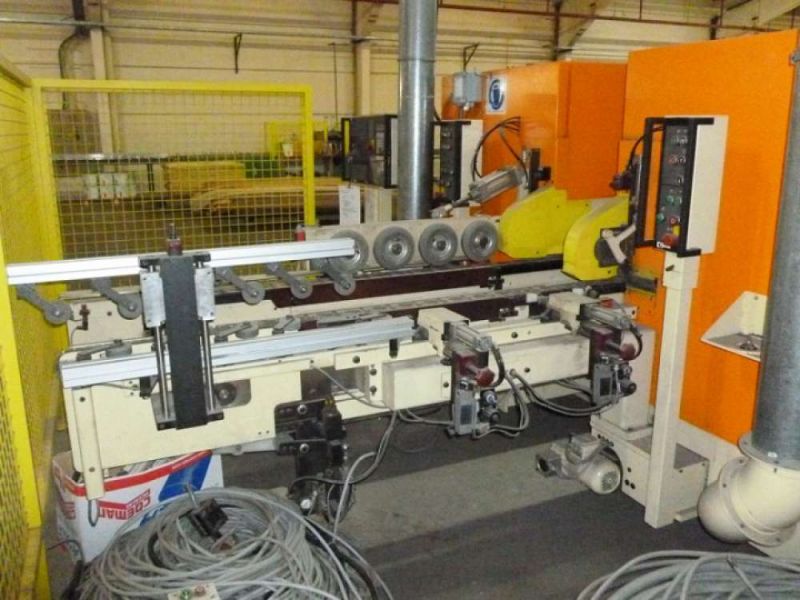

Homag KF 20/17/H/30   Double-sided Sizing and Edge Processing Machine

Machine in CE design

- Rolling block chain

- Infeed roller device, 4 rollers, folding

- Homatic electronic control ES 00



- Fixed side on the left

- Feed speed infinitely variable 10-40 mpmin

- Edge thickness max. 30 mm

- Work piece thickness 8 - 60 mm

- Working width max. 3000 mm

- Chain track extension for panel length max. 1620 mm

- Infinitely variable adjustable dogs, distance 1100 mm.

- Scoring saw / Hogger combination  2,2/6,6 kW, 6000 rpm

- Work piece pre-warming up to max. 45 mm edge material height

- Magazine HL 23

- Hot melt glue application unit

- Quickmelt

- Pressure zone automatically adjustable with, 18 pressure rollers

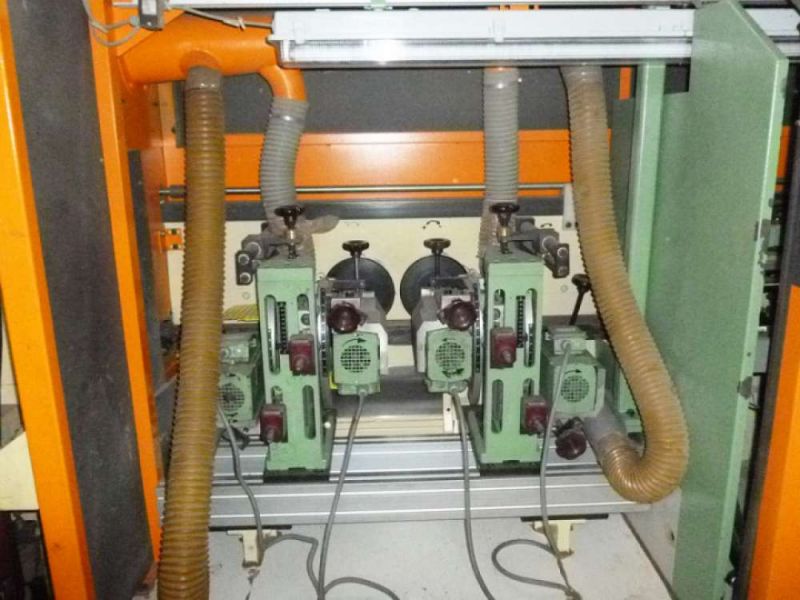

- Edge trimming unit WK 35, 2 x 0,75 kW, 300 Hz, 12000 rpm

- 2 pcs. Top & bottom trimming units, each 2 motors 2,25 kW ea., 300 Hz, 18000 rpm

- Out feed belts, length 500 mm



Electrics 380 V, 50 Hz
