Smooth sanding machine

Details
Machine cat.Smooth sanding machine
Year2001
ManufacturerUniSanding
Type2.2.0.S.V. 0//30°
Dimensions1300 mm
Machine groupSanding Machines / Intermediate Lacquer Sanding Machines
Description

Product information "Smooth sanding machine"

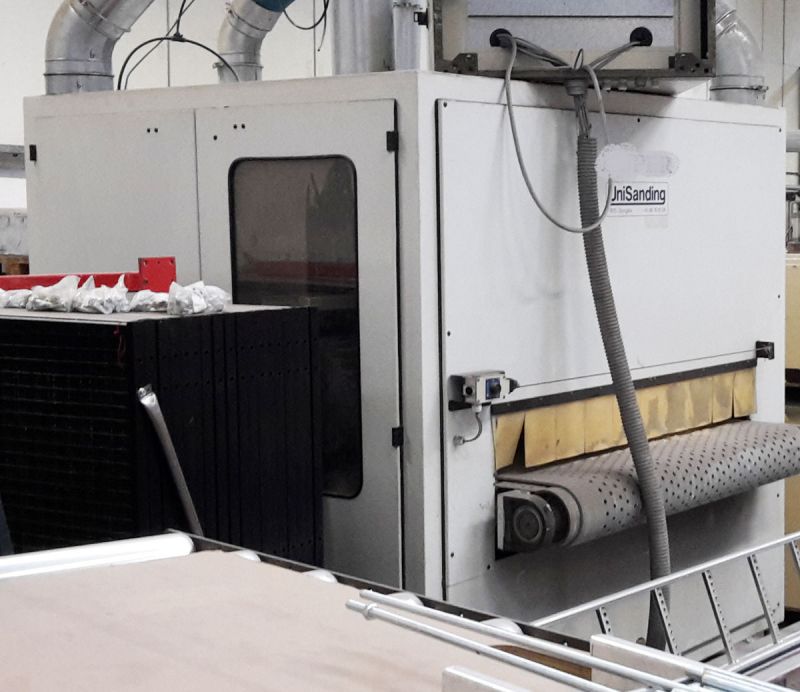

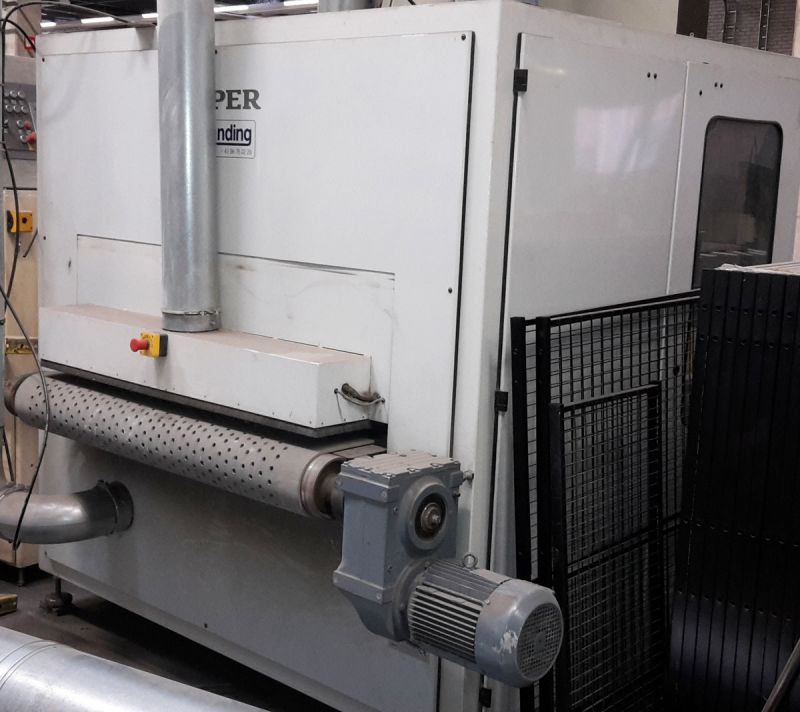

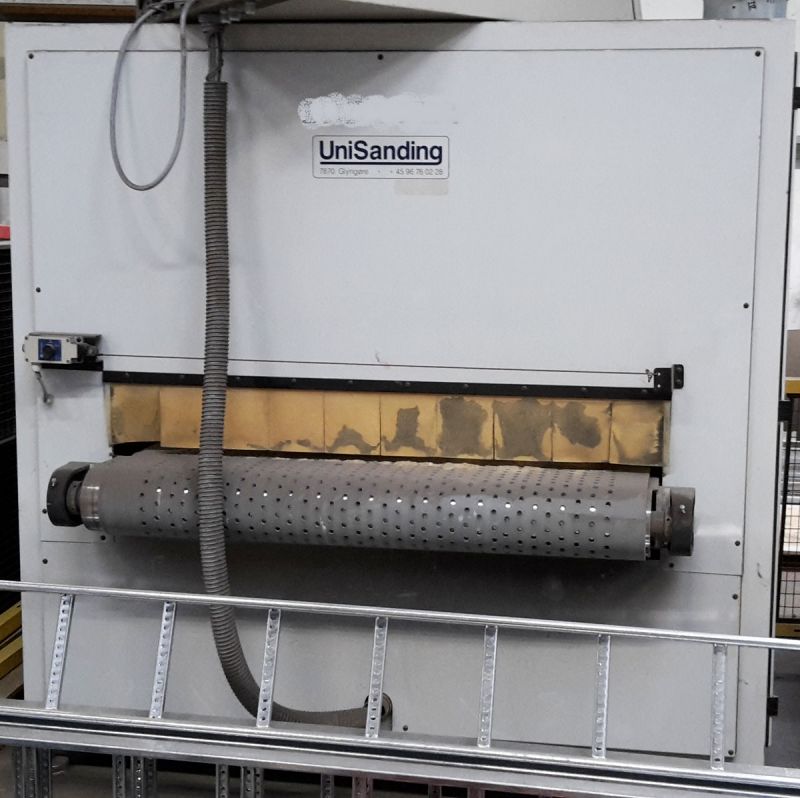

Smooth brushing machine UniSanding, Type 2.2.0.S.V. 0//30°


2 Sanding Heads: 1 running with /   1 running against feed

 Feed speed:  3 –12 meter / min.

Speed sanding heads: 50 – 450 Rpm

Voltage: 3 * 400 V, 50 Hz +N+PE

Extraction: 3000 m³/hour – 25 m/sec

Prepared for line installation.



Work piece size:

Length:             min 100 mm

Height:             min 5 mm - max 150 mm

Width:              1300 mm up to 2100 mm

The vacuum table can fix 100 x 100 mm



Dimension of the machine:

Length: 2185 mm

Height: 2000 mm

Width:  2000 mm

Turbo Blower + Cleaning brushes



Vacuum table





Application:

Surface sanding

Light profile sanding in- / outside

Finish wood sanding – All types of materials

Lacquer sanding- all types of lacquer / primer
