Wide belt sanding machine

Machine cat.Wide belt sanding machine
Dimensions1300 mm
Machine groupSanding / Intermediate Lacquer Sanding Machines

Product information "Wide belt sanding machine"

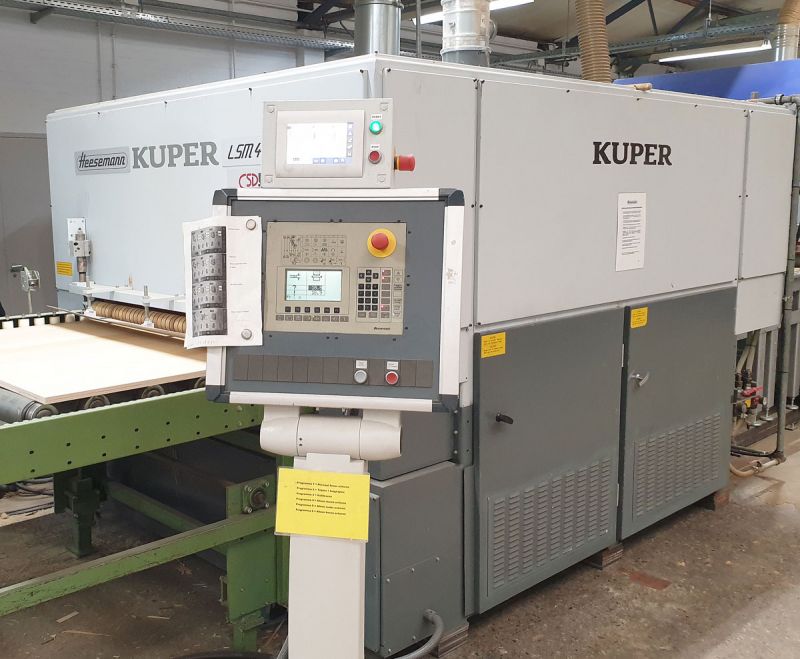

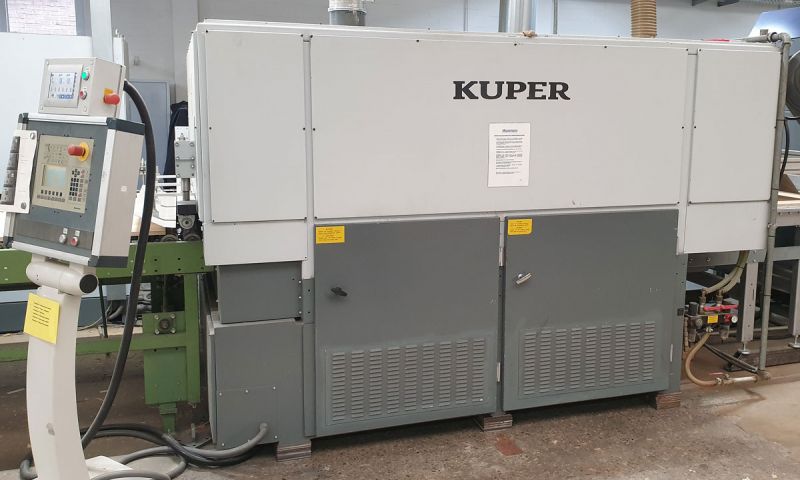

Heesemann LSM4-U wide belt sanding machine

working from below

Sanding width                        1300 mm
Work piece thicknesses         3 - 80 mm
Numerical control terminal
Infinitely variable feed from   4 - 25 m / min

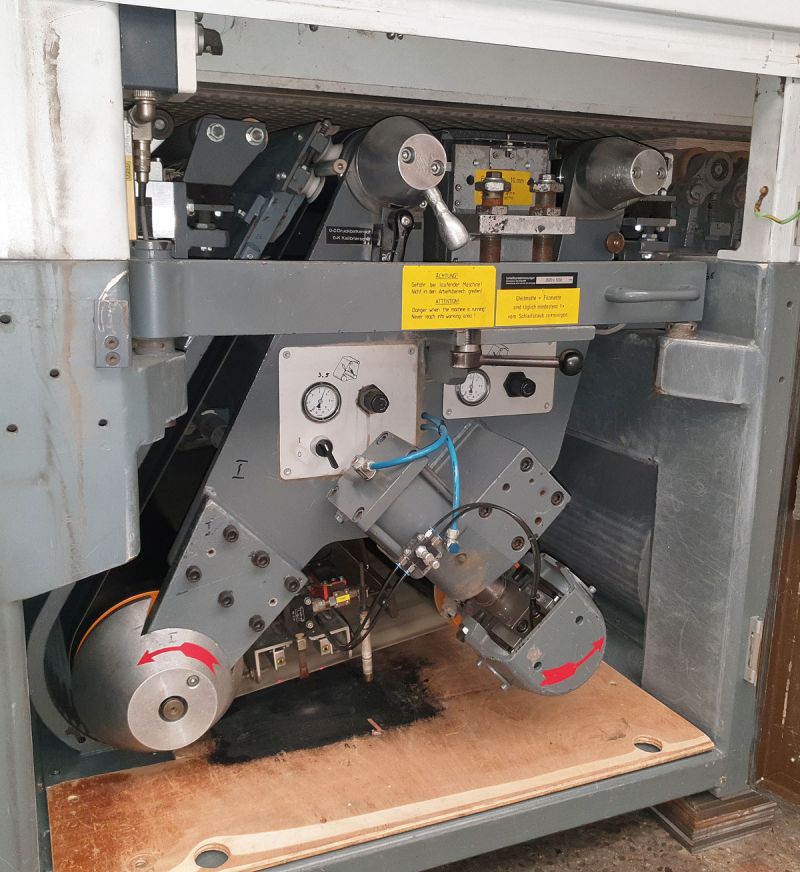

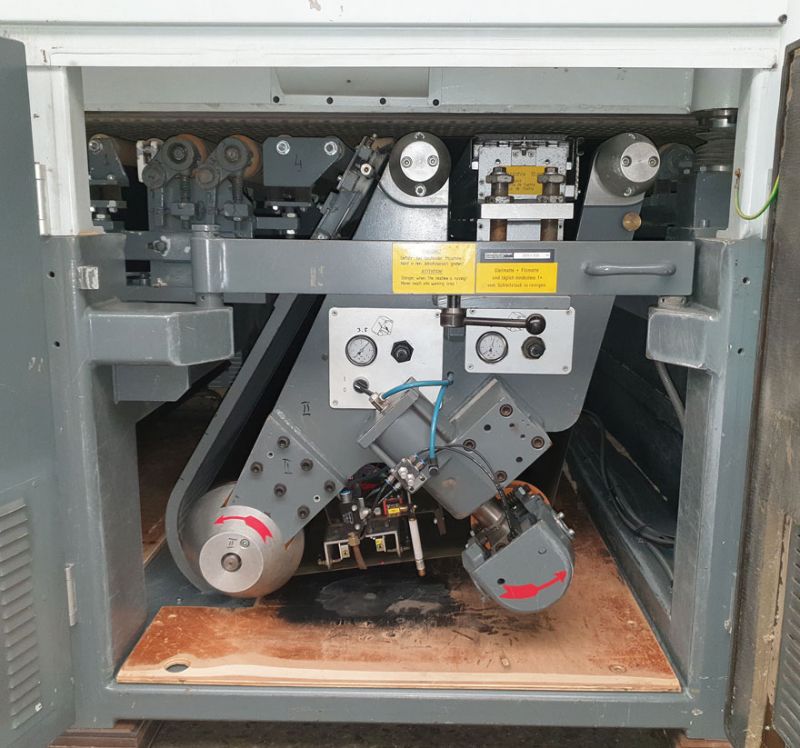

2 x Longitudinal sanding units, each
  Sanding belt dimensions    2620 x 1350 mm
  Belt speed                              10 - 20 m / min
  Drive power                            13/17 kW
  CSD - electronic pressure bar,
  distance control rollers        16 mm

1 Longitudinal sanding unit with front deflection roller with a larger diameter
   for light calibration work
Brush roller unit, diameter      150 mm
  motor                                          1.5 kW
Vacuum transport carpet

Operating side on the right
