Multifoiler plant with manual pin system

Machine cat.Multifoiler plant with manual pin system
TypeBTF 1528 - 1400
Dimensions1500 X 2800 MM
Machine groupLaminating

Product information "Multifoiler plant with manual pin system"

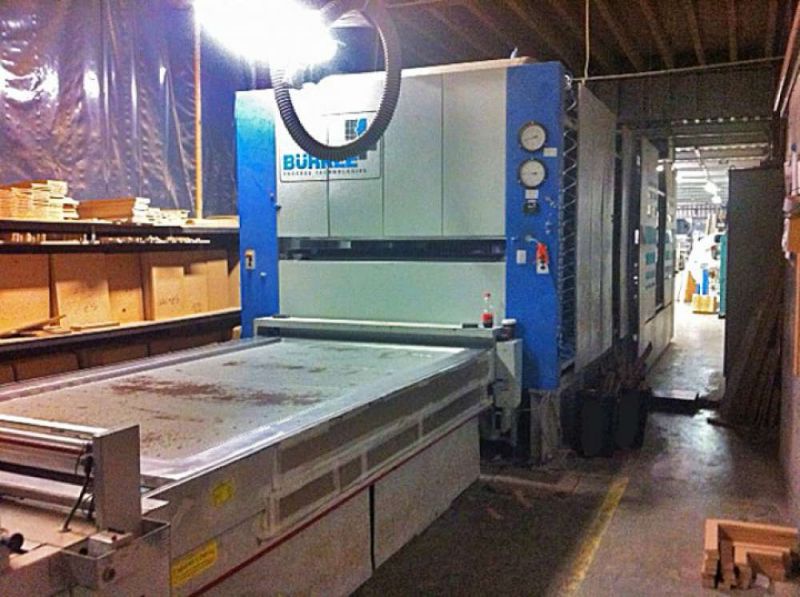

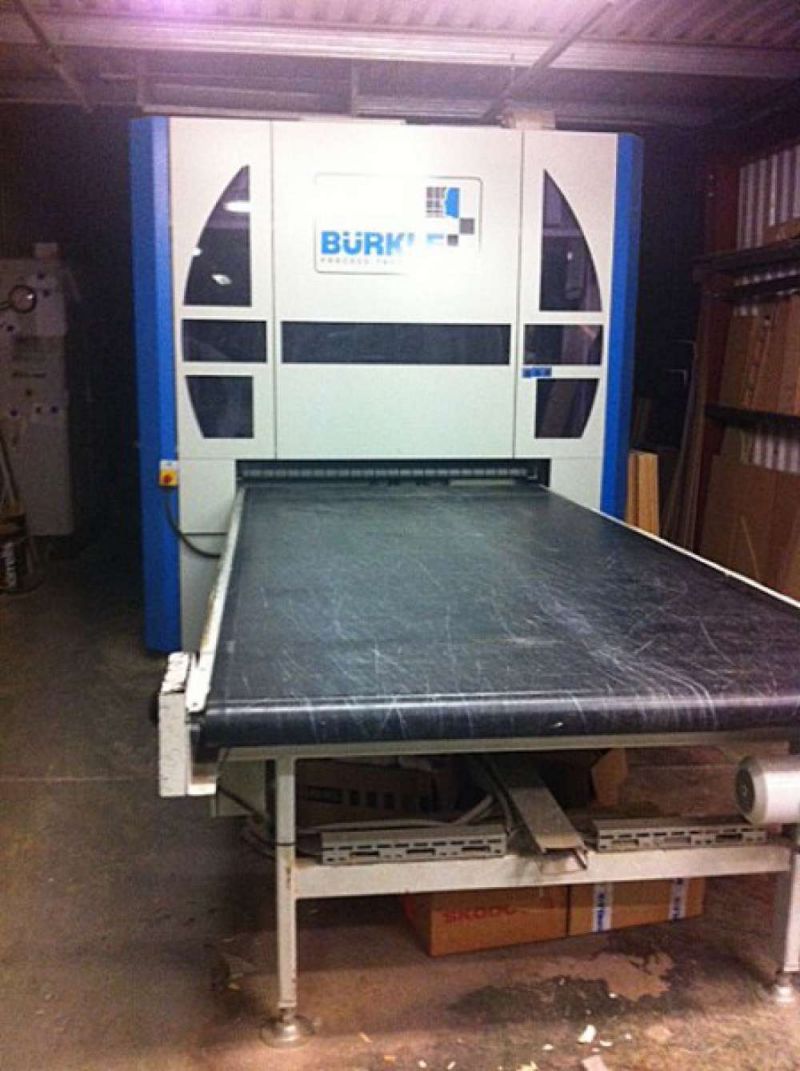

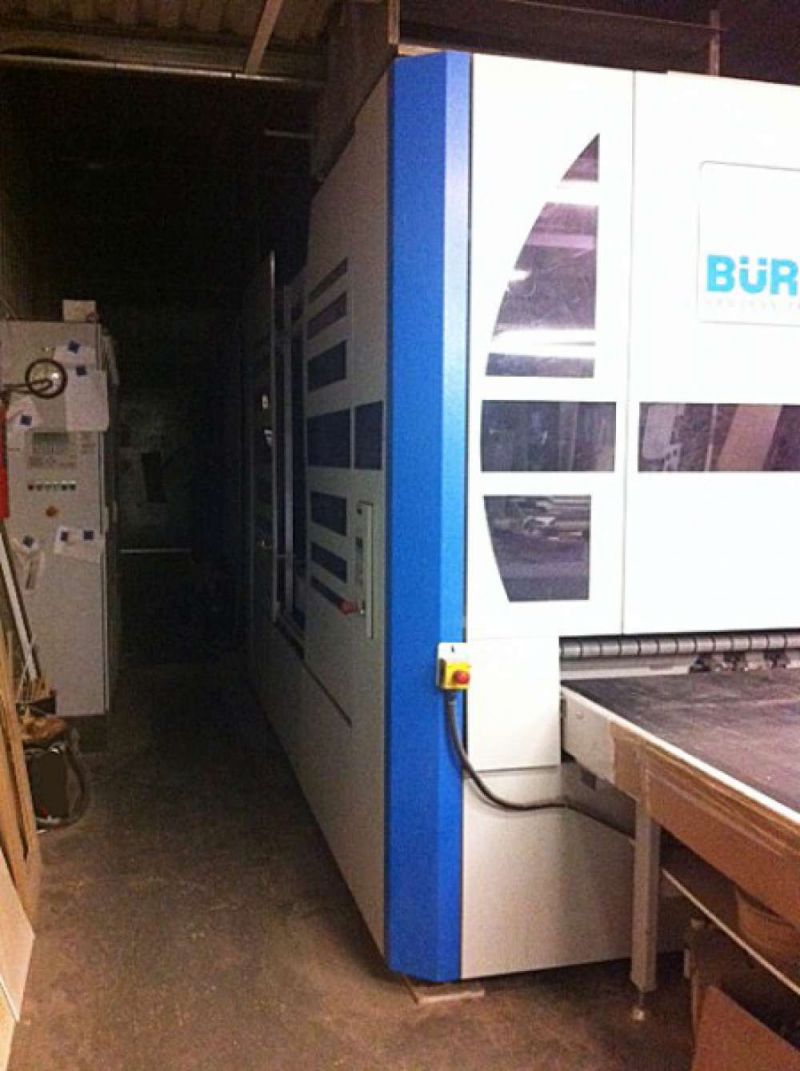

1 BÜRKLE MULTIFOILER Model BTF 1528 – 1400,

- Rotation -

Line for the membrane-less thermoform lamination of flat and moulded
MDF boards with thermoplastic foils

Line consisting of:
- Foil Discharge device
- Automatic foil forward feed
- Loading Station with lay-up station of the boards and turning device
- Two-Daylight Transport System
- Multifoiler BTF 1528-1400
- Chain transport system within the press
- Lay-up tray
- Bürkle Multi-Pin system
- Switch cabinet

I. Technical Data of the Materials:
1) Surface Material
Good industrial quality foils from the roll or cut to size
a) PVC foil 0,30 - 1,0 mm
b) High gloss foil 0,5 - 1,0 mm
c) PET foil 0,35 - 0,6 mm
All foils suitable for the Bürkle thermoforming process
Thicker foils on request
2) Substrates
MDF boards, either with a flat or profiled surface
Thickness tolerance +/- 0,15 mm
Temperature of boards approx. +18º C
Moisture of boards approx. 6 - 8%

3) Glues
a) Dispersion glue 80 - 150 g/m2
for foils, one-component or two-component polyurethane glue

Dimensions of heating platens 1500 x 2800 mm
Loading side 1500 mm
Maximum temperature of heating platen 140º C
Maximum compressed air connection 6 bar
Installed heating power of top heating platen 31 kW
Weight of the press approx. 14 000 kg
Load on foundation approx. 35 N/cm2
Operating side right-hand
