Multifoiler

Details
Machine cat.Multifoiler
Year1997
ManufacturerBürkle
TypeBTF 1634/60
Dimensions1600 x 3400 mm
Machine groupLaminating
Description

Product information "Multifoiler"

Multifoiler Bürkle BTF 1634/60, yop 1997   45729  e

Plant for the laminating of smooth and formed MDF workpieces with thermoplastic foils

consisting of:



Pos A:

1 Laying and Feeding Station

with reversible drive, wheel flange rollers, mounted on lifting table



Pos B:

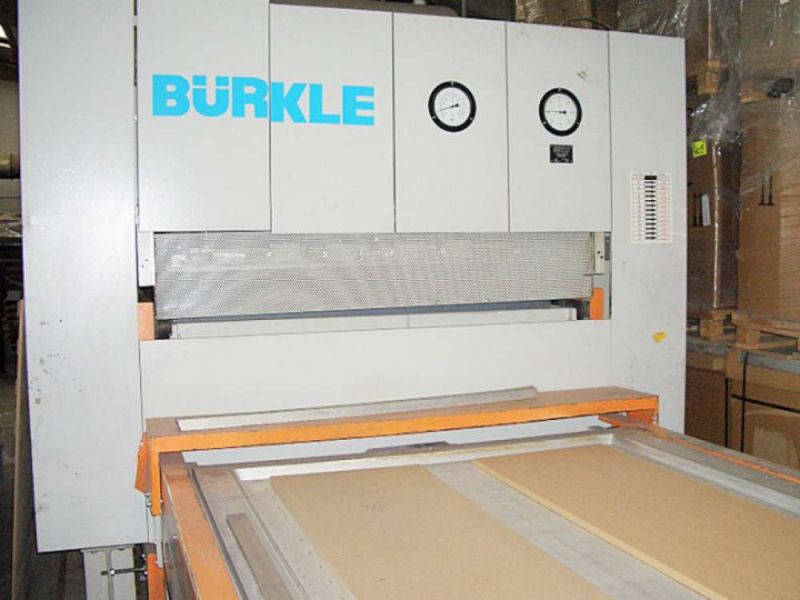

1 Multifoiler BÜRKLE, Type BTF 1634/60

heating platen dimensions: 1600 x 3400 mm

feeding side: 1600 mm

1 lower seal frame

mounted at the top heating platen with quick clamping system

1 vacuum device

with vacuum pump and deposit container



Pos C:

1 Discharging Station

with reversible drive, wheel flange rollers, mounted on lifting table



Pos D:

1 Wheel Flange Roller Conveyor in the Press

frequency-controlled

with reversible drive



Pos E:

1 Wheel Flange Roller Conveyor under the Press

pole-changing

installed performance: 0,55 kW



Pos F:

3 Laying Pallets

suitable for the heating platen size 1600 x 3400 mm



Pos G:

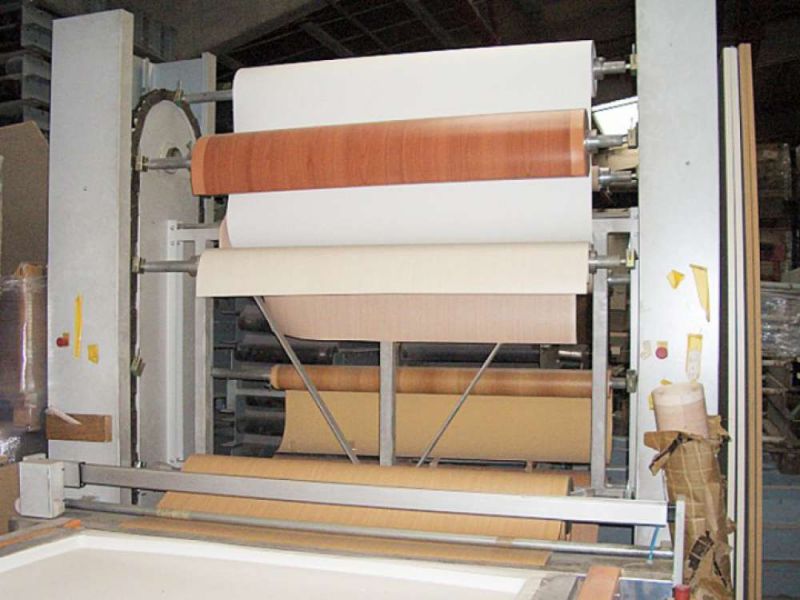

1 Multi-Roller-Paternoster-Circulating Rack

vertically guided device

for the deposit of foil rollers

incl. 1 piece of foil cutting device

and 2 pieces of foil changing wagons



Pos H:

1 Pallet Separating System Separator

for the cross separating of the pallet



Pos I:

3 Pallet Separating System Separator

for the longitudinal separating of the pallet



Pos J:

1 Multi-Compact Bale Press

for compression of residual foil



Additional accessories:



- 3 pieces of Intermediate Frames

for higher workpieces, max. 50 mm, frame thickness 20 mm

to be positioned onto the 3 laying pallets



- 1 Switch Cabinet

with SPS Siemens

with all necessary input/output constructional groups



Operating voltage: 400 V, 50 Hz, 3 ph.
