Sizing and Edge Processing line

Details
Machine cat.Sizing and Edge Processing line
Year2002
ManufacturerIMA
TypeCombima
Dimensions2500 mm
Machine groupSizing and Edge Processing
Description

Product information "Sizing and Edge Processing line"

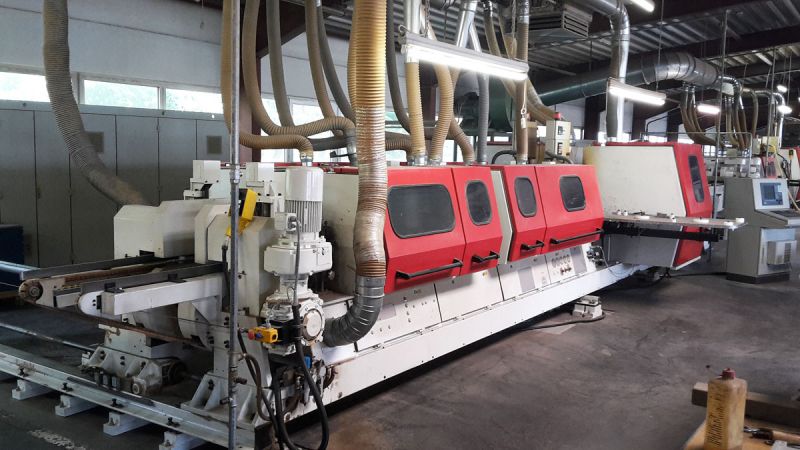

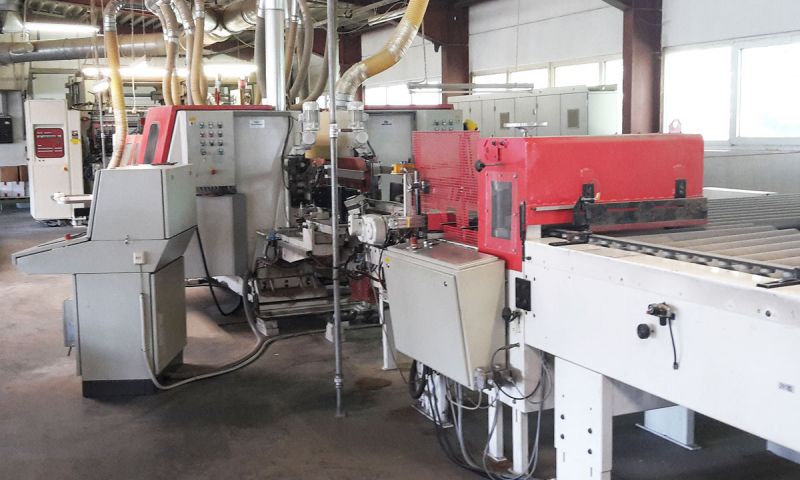

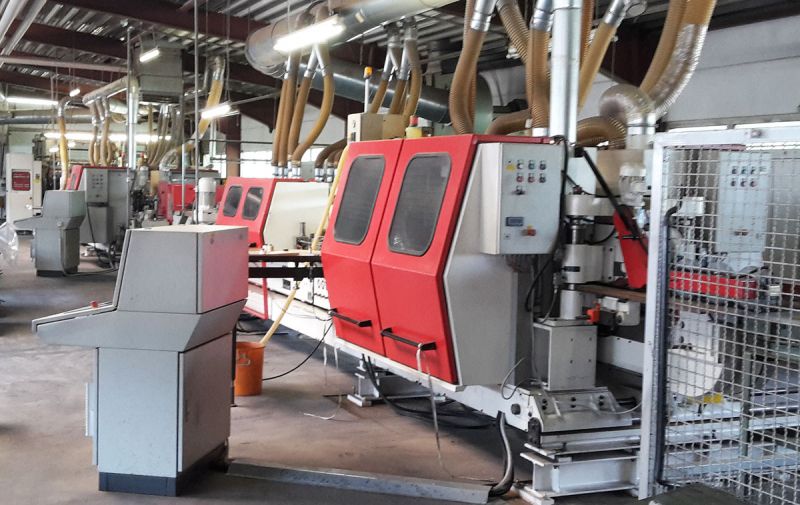

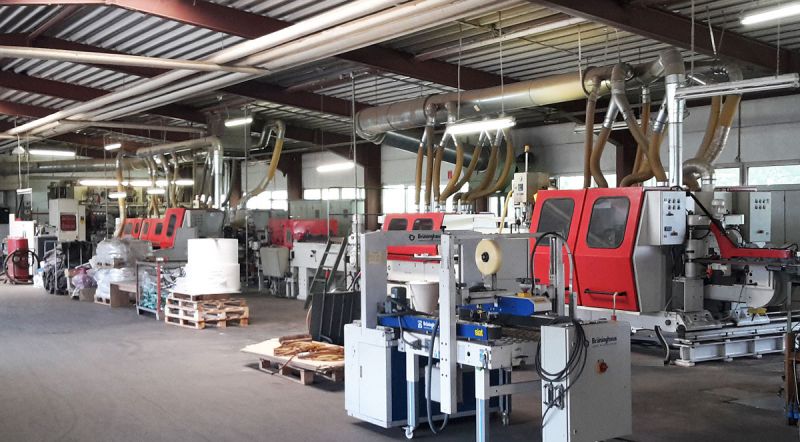

1 used Sizing and Edge processing Line IMA Combima, year of construction 2002 *

consisting of:

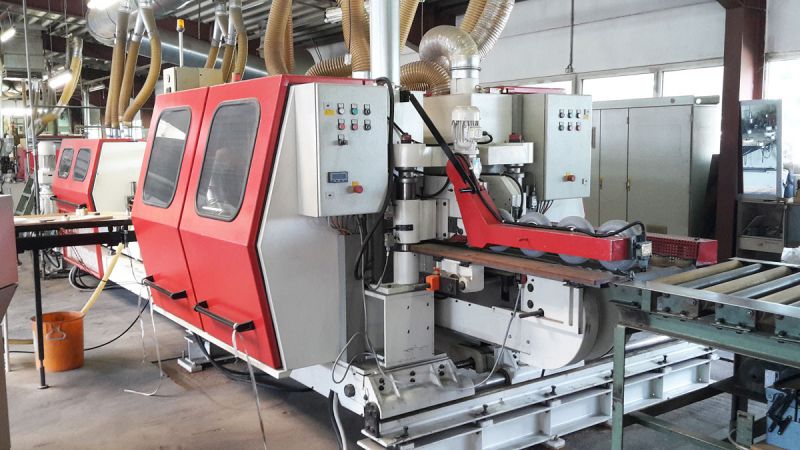

Machine I: IMA COMBIMA K / II / 4 / F / SR 420
(For longitudinal processing)

Working width min. 250 mm, max. 1500 mm
Passing height 10 - 40 mm
Feed speed 10 - 40 m / min
Max. Strip thickness for roll materials approx. 0,4 - 1,3 mm

Feeding device with 4 driven feed rollers

Equipment per side:
Scoring saw unit, 1.5 kW each, controllable
Hogging unit 4.4 kW
Milling unit 4.4 kW, controllable and swiveling
Milling unit 4.4 kW, controllable (left side only)

ONLY LEFT SIDE

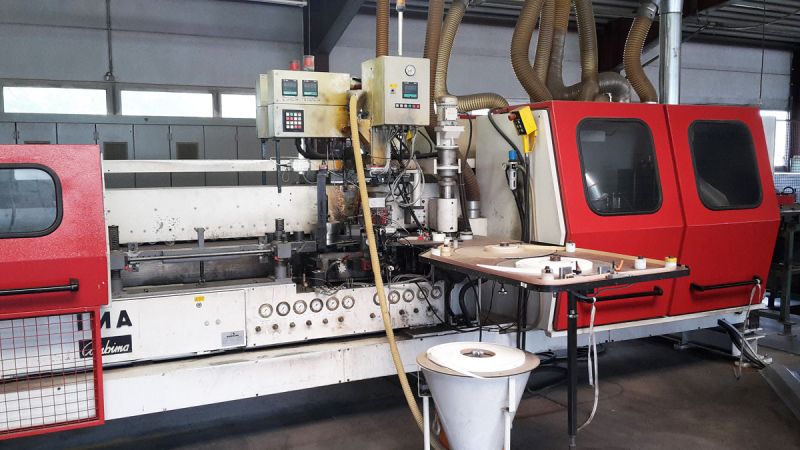

Gluing unit for optional operation Straight edge or softforming gluing

ONLY RIGHT SIDE
Gluing unit for straight edge up to 1.3 mm

2-fold reel magazine, max. Roll diameter of 550 mm
End trim unit, 2 x 150 W each (left side only)
Pre-mill / flush milling unit, 2 x 400 W each
Fine milling / chamfering unit, 2 x 150 W each
Flat scraping unit (left side only)
Buffing

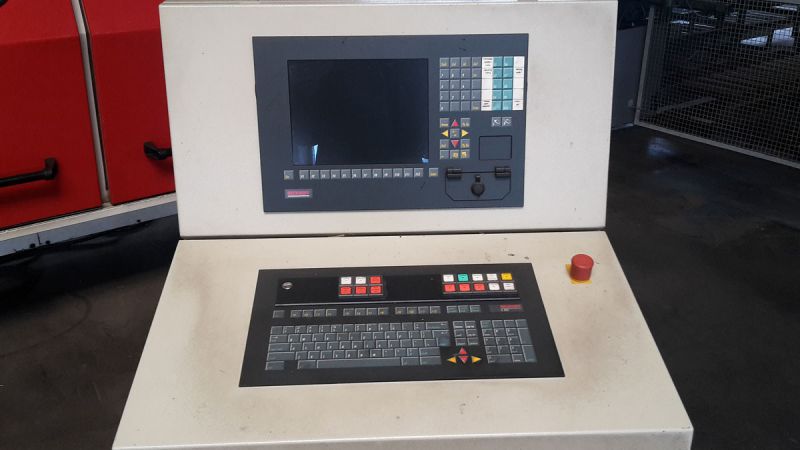

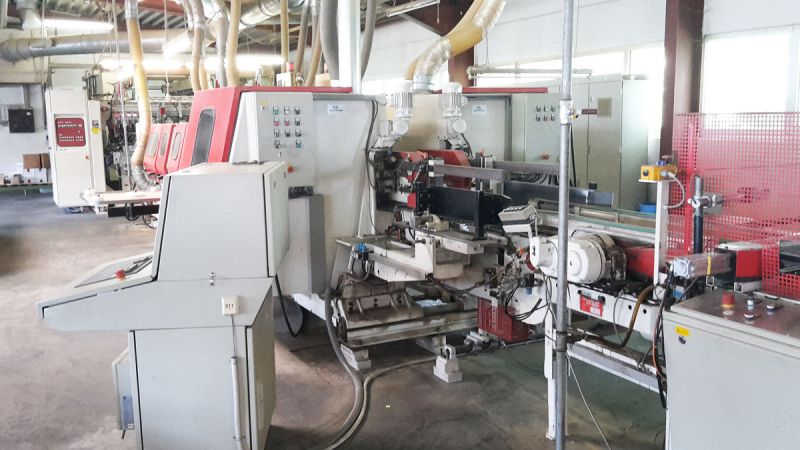

PC control Beckhoff
Width adjustment motorized with electronic actual and set point display,
Height adjustment by motor, readable via scale

Dynamic converter 100 Hz
Dynamic converter 200 Hz




Item 2
Wemhöner Double Cone Turning Unit Type W 16




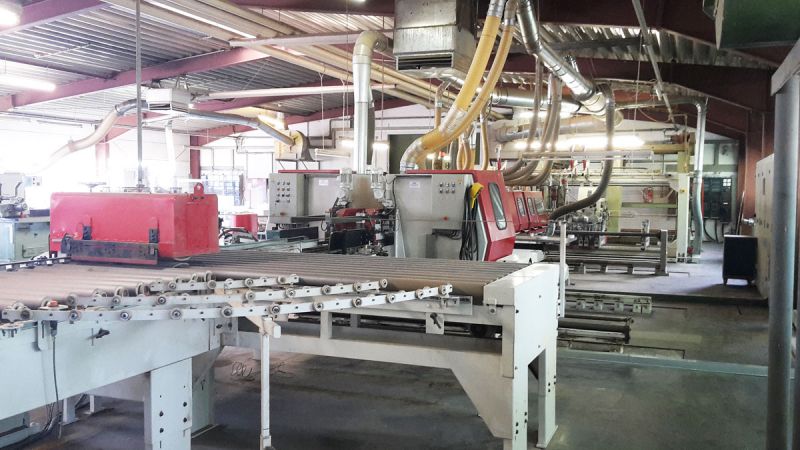

Machine II: IMA Combima
(For the transverse processing)

Magazine: part magazine up to 80 mm height, with lifting and aligning device for parts up to 800 mm

Working width min. 300 mm, max. 2500 mm
Passing height 10 - 40 mm
With dogs, distance 1080 mm,
Dogs control for height of 6, 12 and 18 mm
Feed speed 10 - 40 m / min
Max. Strip thickness approx. 1.3 mm
Chain track extension for 800 mm long parts

Equipment per side:
Scoring saw unit, 1.5 kW each, controllable
Hogging unit per 4.4 kW
Free space
Edge gluing up to approx. 1.3 mm roll material
Hot melt gluing application
2-fold reel magazine
End trim unit, 2 x 150 W each
Pre-mill / flush milling unit 2 x 400 W each
Fine milling / chamfering unit, 2 x 150 W each
Copy milling unit, for front / rear, bottom / top, 4 x 150 W
Buffing 2 x 0.55 kW each
Out feed transport belt 800 mm long

Electronic Line control
Width adjustment motorized with electronic actual and set point display,
Height adjustment by motor, readable via scale

Converters 100 Hz
Converters 200 Hz

Switch cabinet




Option:
- Meinert double-sided feeding
  pit design
- Wemhöner Patennoster stacking system
  without pit



* Completely rebuilt in 2002
