CNC machining center

Details
Machine cat.CNC machining center
Year2012
ManufacturerHOMAG
TypeBOF 612 profiline
Dimensions2100 x 3100 mm
Machine groupCNC Working centers / Stationary Processing
Description

Product information "CNC machining center"

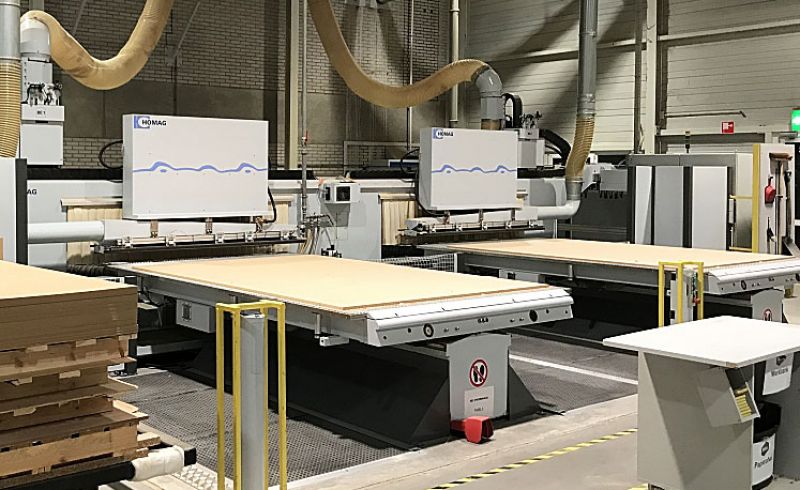

HOMAG PROFI BOF612 / 21/31 / 2R CNC machining center

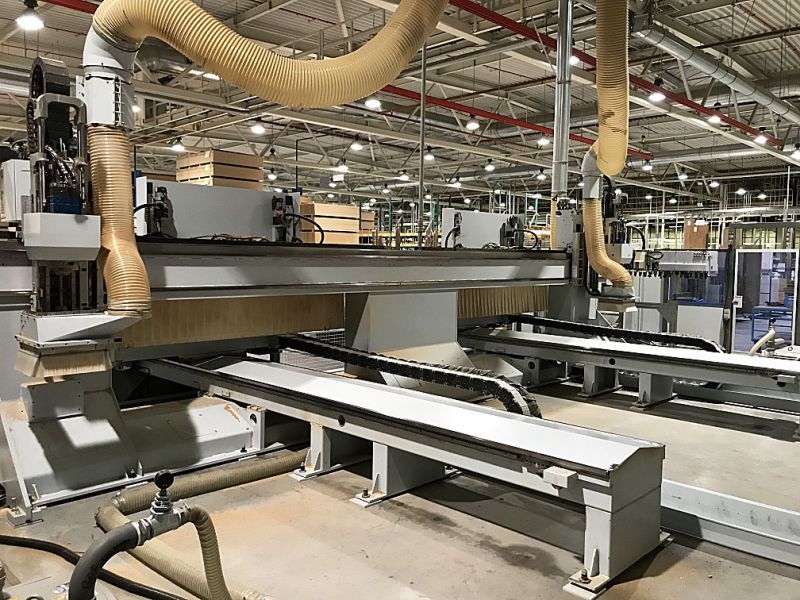

CNC-controlled machining center in gantry design, for milling and drilling work pieces made of wood or wood-like materials.

Designed for 2 main spindles for synchronous machining or for the independent machining of 2 work pieces (Independent Axis). Main spindles built on the back of the portal traverse.

Work piece length         max. 2100 mm
Work piece width          max. 3100 mm
Work piece height         max.     60 mm with standard clamp
                                          max.   300 mm including clamping device (with a max. unit length of 270 mm                                                                       and moving tool changer

Machine equipment:

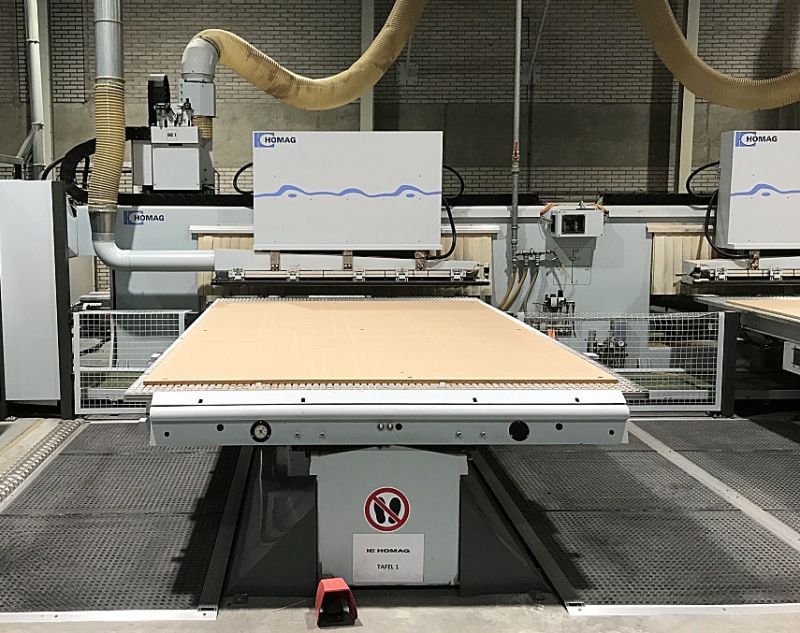

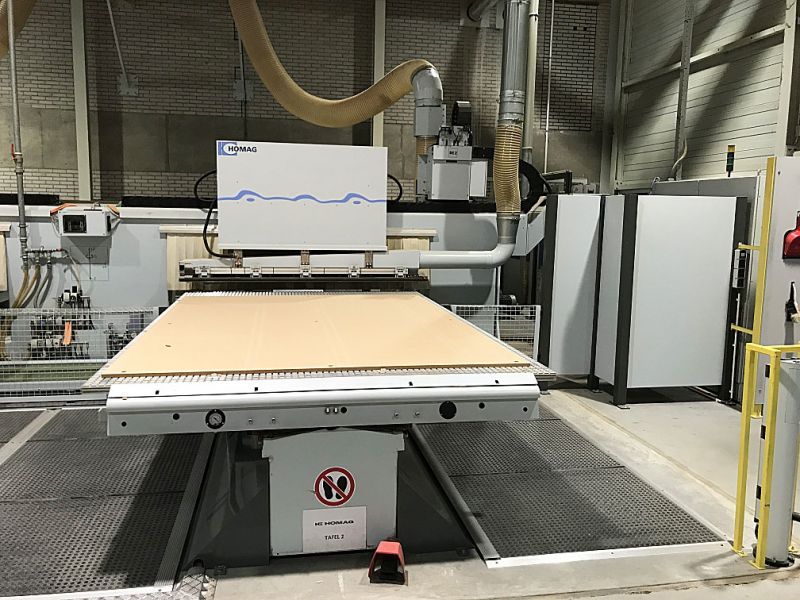

Clamping table: 2 movable aluminum grid tables,
1 vacuum system per table
Vacuum guidance system 2 x 1000m3 / h

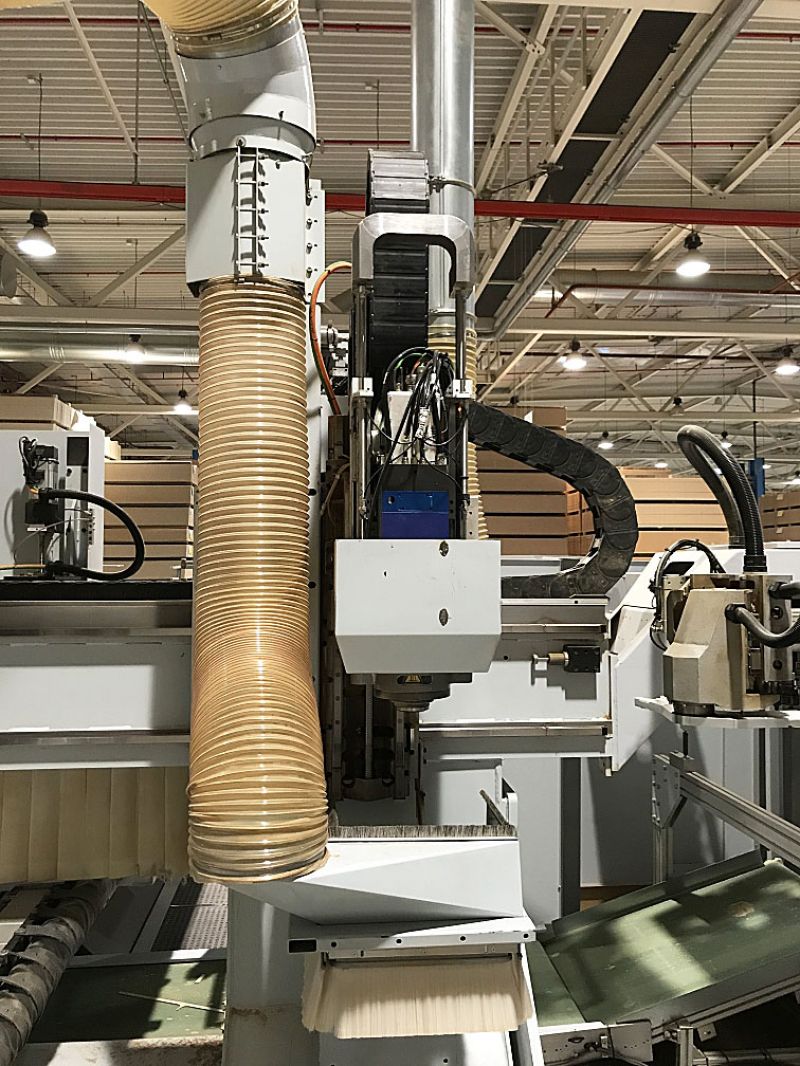

2 main spindles per 15 kW, up to 24,000 1 / min, tracing system Senso-flex per main spindle,

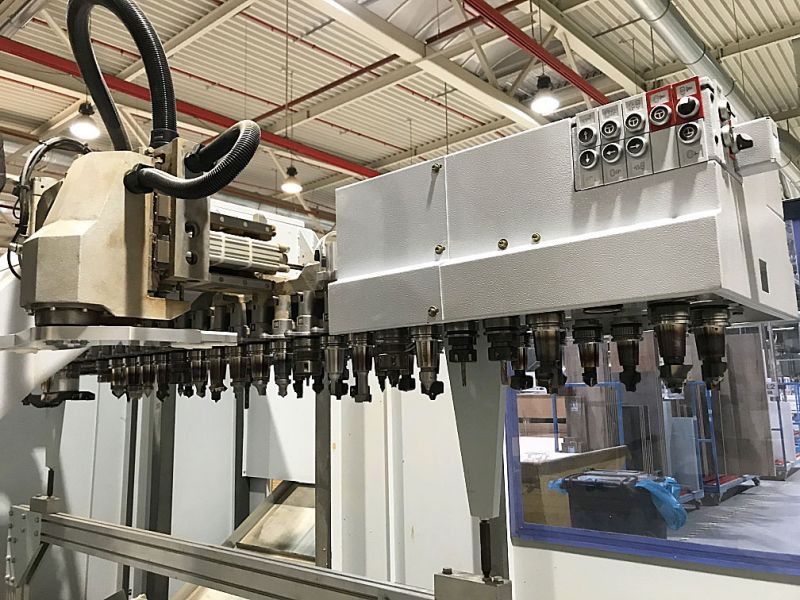

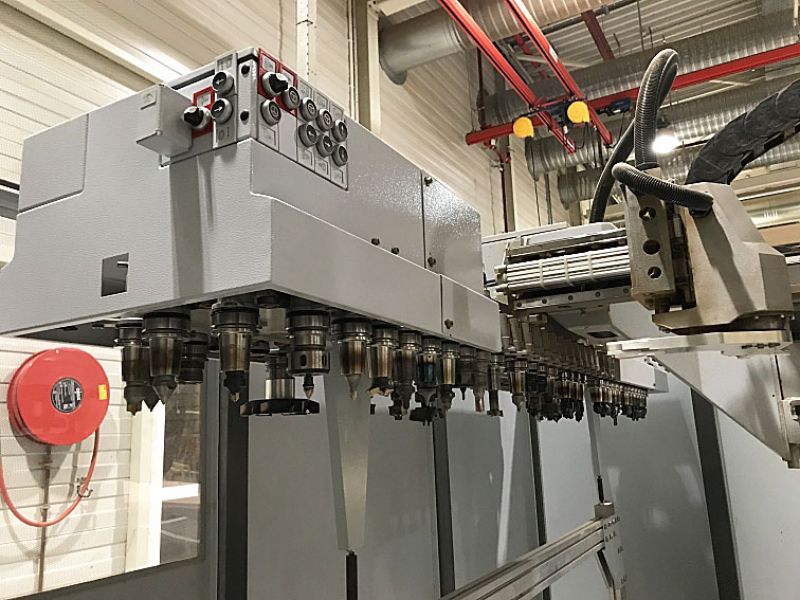

2 pcs. 72-fold auto. tool changer

Chip conveyor belt with ascending conveyor

Machining of abrasive materials

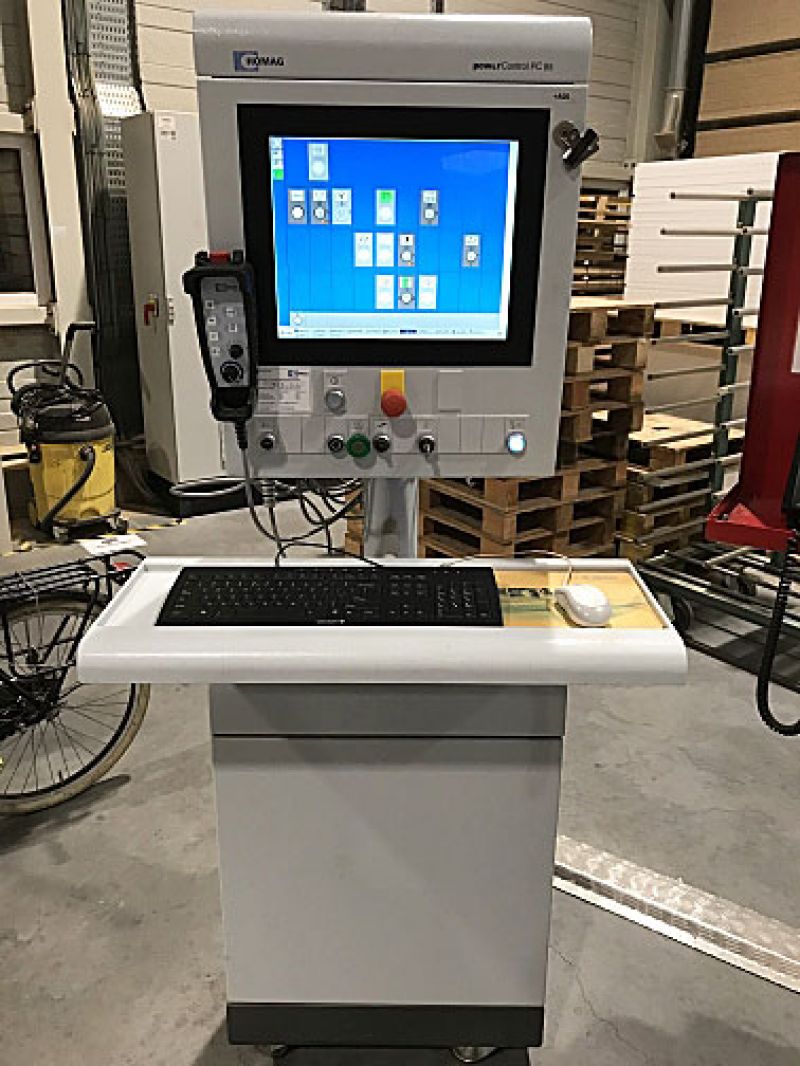

Powercontrol PC85
PC85 with extensive software package, graphic operating programs, etc.

Safety and protection devices, step mat + light barriers

Electrical equipment 400 volts, 50/60 Hz
