Short Cycle Press Line

Details
MaschinenartShort Cycle Press Line
Baujahr1999
FabrikatSiempelkamp / Wemhöner
Type
Bearbeitungsmaße4880 x 2050 mm - 2 x 2440 x 2050 mm
MaschinengruppeBeschichten
Beschreibung

Produktinformationen "Short Cycle Press Line"

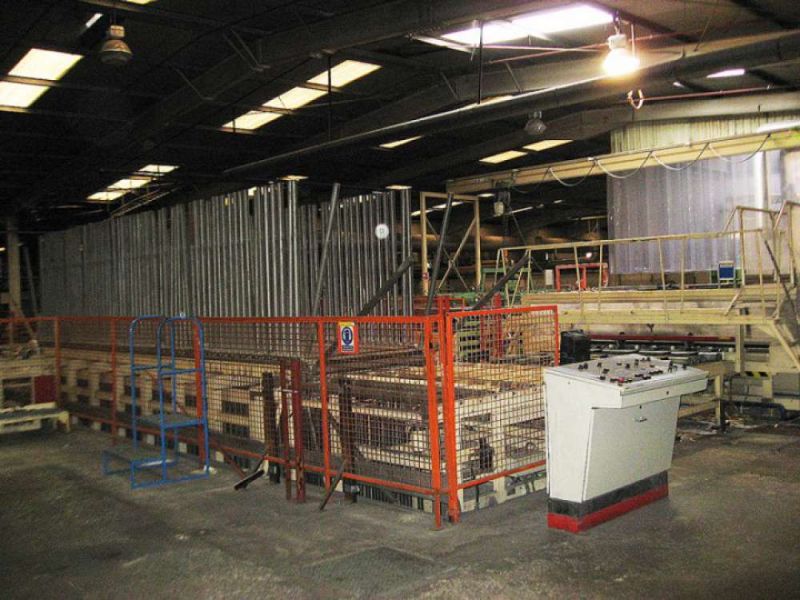

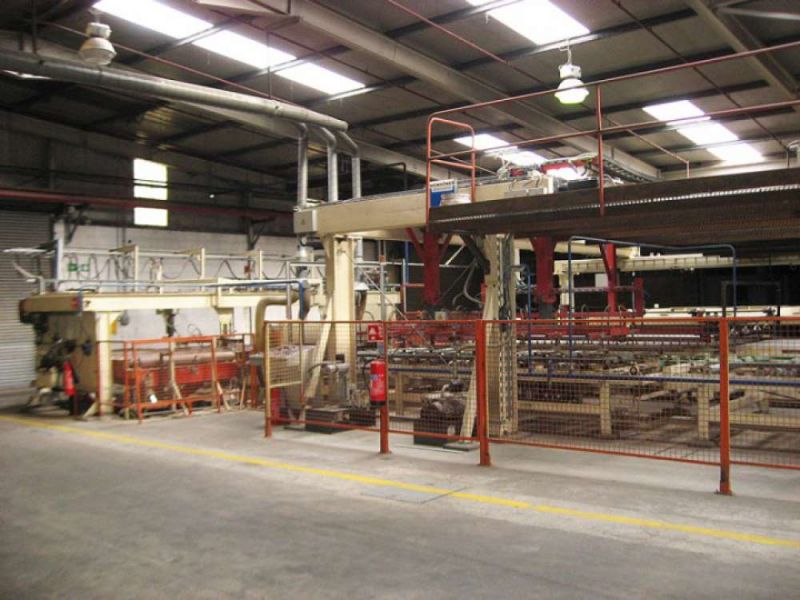

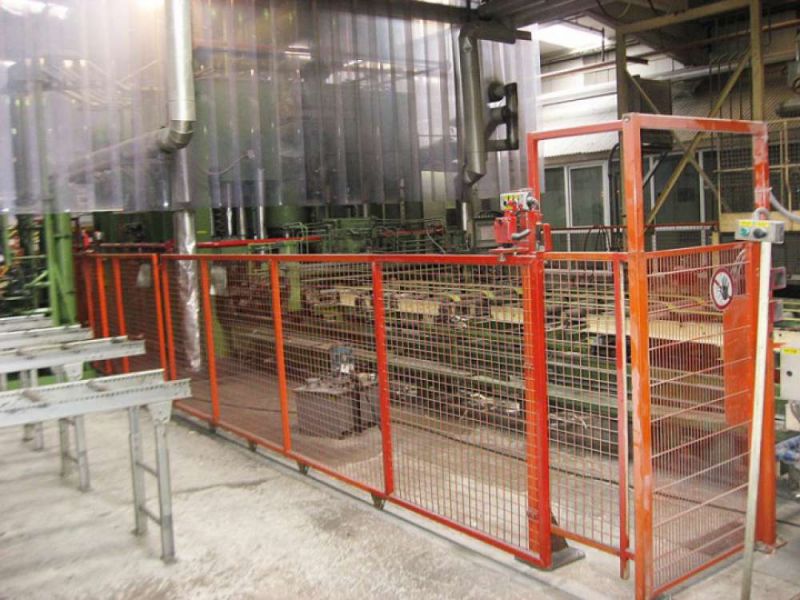

Siempelkamp / Wemhöner Short Cycle Press Plant for Decorative Panels

complete with Hydraulic Single Daylight Short Cycle Press



Technical data:

press platen dimensions                       approx. 2050 x 5300 mm

feeding side                                                    approx. 2050 mm

number of pistons                                            10 pcs

diameter of pistons                              350 mm

specific pressure                                 max. 400 N/cm2

on a surface of                                    2.050 x 4.880 mm

heating channels for max.

temperature of thermal oil                     220 degrees C



Special features:

- 2 - panel - press         2 x 2440 x 2050 / 1830 / 1220 mm

  Formats to be pressed in one or 2 units per batch

- special carriage for feeding and unloading

- max. 85 to 100 press cycles per hour
